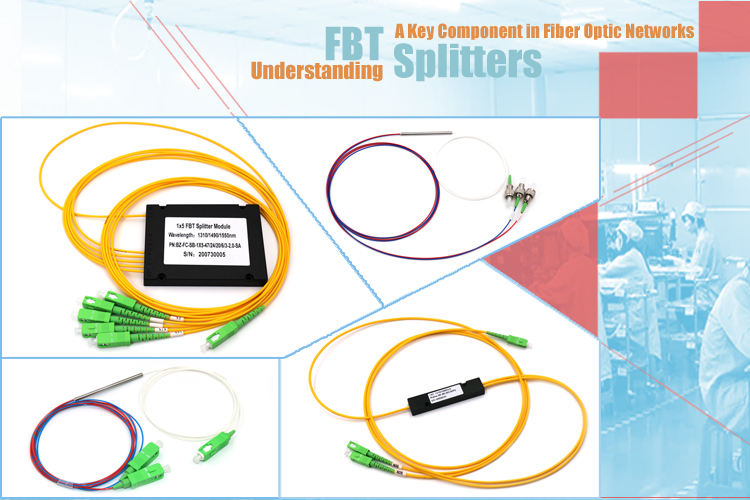

Understanding FBT Splitters: A Key Component in Fiber Optic Networks
As the demand for high-speed data transmission and connectivity continues to rise, the importance of efficient optical fiber technology cannot be overstated. Among the critical components in fiber optic networks is the FBT Splitter, a device designed to divide light signals from one fiber into multiple paths. In this blog, we’ll explore what an FBT Splitter is, how it functions, its benefits, various types, key factors to consider when choosing one, and how it compares to its counterpart, the PLC Splitter.
What is an FBT Splitter?
FBT Splitter is a passive optical device that takes a single light signal from one optical fiber and splits it into several distinct fibers. This functionality is vital for expanding the reach of fiber optic networks without requiring extensive additional infrastructure.
How Does an FBT Splitter Work?
FBT Splitters operate using a technology known as fusion splice and branching, where multiple optical fibers are fused together in a specific manner to facilitate signal division. When a light signal enters the FBT Splitter, it uses the principles of optical signal duplication to evenly distribute the signal across its output fibers, ensuring each segment receives an adequate level of light for reliable transmission.
Benefits of Using FBT Splitters
1. Scalability
One of the standout features of the FBT Splitter is its ability to facilitate network scalability. By enabling the division of signals into multiple paths, it supports the expansion of fiber optic networks without necessitating major changes to existing infrastructure.
2. Cost-Effectiveness
In comparison to deploying dedicated fibers for each connection, FBT Splitters offer a more economical solution, thereby reducing installation and material costs.
3. Energy Efficiency
FBT Splitters minimize light leakage, which can significantly reduce the power needed for optical signal transmission. This energy efficiency leads to lower operational costs and a reduced environmental footprint.
4. Compatibility
FBT Splitters are extensively compatible with various types of optical fibers and network devices, which makes them suitable for diverse network configurations and setups.
Types of FBT Splitters
FBT Splitters come in various configurations, based primarily on the number of input and output ports. Here are some common types:
.FBT Splitter 1x2: Divides one input signal into two output fibers.
.FBT Splitter 1x4: Takes one input signal and splits it into four outputs.
.FBT Splitter 1x8: Splits one input into eight fibers.
.FBT Splitter 1x16: Offers the division of a single input into sixteen separate outputs.
Considerations When Choosing FBT Splitters
Selecting the right FBT Splitter for your needs involves evaluating several key factors:
1. Port Count
Assess the number of connections you need in your network. The right port count will ensure that your network can efficiently handle traffic without bottlenecks.
2. Insertion Loss
Insertion loss refers to the reduction in signal strength as it passes through the splitter. Choose a splitter with low insertion loss to maintain high signal quality.
3. Quality of Materials
The durability of your FBT Splitter is crucial for long-term performance. Opt for models made from high-quality materials that can endure tough environmental conditions.
4. Operating Temperature
Ensure that the splitter can operate smoothly within the temperature range of your specific installation environment to prevent signal degradation.
5. Price Consideration
While budget constraints are vital, always balance cost with quality to guarantee that you don’t sacrifice performance for price.
Installation and Usage
Installing an FBT Splitter requires careful planning:
.Verify that the splitter meets your network specifications.
.Determine the optimal installation location within your fiber optic network.
.Connect the input port from the fiber source to the splitter.
.Connect the output ports to the respective devices needing the signal.
Using the FBT Splitter: Once installed, ensure that the optical signals enter through the appropriate input, and check the connections of output fibers to ensure proper signal distribution.
FBT Splitter vs. PLC Splitter
While FBT Splitters and PLC (Planar Lightwave Circuit) Splitters serve a similar purpose, they differ in technology and performance. FBT Splitters utilize optical signal duplication technology, while PLC Splitters leverage integrated light wave technology.
Key Differences:
.Insertion Loss: PLC Splitters typically exhibit lower insertion loss compared to FBT Splitters.
.Cost: PLC Splitters generally come at a higher price point due to their advanced technology, but they also offer better performance in high-demand environments.
Conclusion
In summary, the FBT Splitter is a fundamental component of fiber optic networks, enabling efficient signal distribution and expansion capabilities. With advantages in scalability, cost-effectiveness, energy efficiency, and compatibility, it proves to be an indispensable tool in modern telecommunications and networking.
Whether you're enhancing an existing network or designing a new one, understanding the nuances of FBT Splitters—including their types, selection criteria, and installation processes—is essential for optimized performance. Let this guide serve as a roadmap in your journey toward harnessing the power of fiber optic technology effectively.
