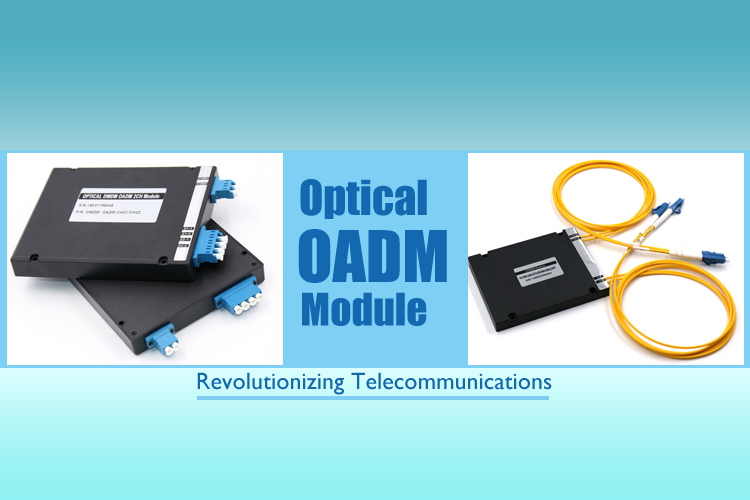

The Optical OADM Module: Revolutionizing Telecommunications
The Optical OADM Module: Revolutionizing Telecommunications
In the rapidly evolving world of telecommunications, there is a growing need for efficient and high-performance optical networking solutions. One technology that has gained significant attention in recent years is the Optical OADM (Optical Add-Drop Multiplexer) module. This advanced device has the potential to revolutionize the way data is transmitted and received, enabling faster speeds, increased capacity, and improved network reliability. In this Blog, we will delve into the concept of the Optical OADM module, its applications, benefits, and future developments.
I. What is an Optical OADM Module?
An Optical OADM Module is an advanced integration of the core functional elements of a traditional optical add-drop multiplexer (OADM) into a single, compact module. Traditional OADMs have discrete components such as optical circulators, filters, couplers, and switches that are interconnected via fibers or waveguides on an optical bench or chassis.
An Optical OADM Module miniaturizes all these components onto a single photonic integrated circuit (PIC) substrate using nanophotonics and microfabrication techniques. This molecular-scale integration enables the OADM's add, pass-through, and drop functions to be realized in a highly compact form factor. Compared to traditional OADMs, Optical OADM Modules offer improved scalability, lower power consumption, reduced footprint, and increased programmability.
II. How does an Optical OADM Module work?
The key to an Optical OADM Module's operation is its photonic integration. All the optical components like arrayed waveguide gratings (AWGs), microring resonators, mach-zehnder interferometers, and semiconductor optical amplifiers are fabricated directly onto a single chip substrate using materials like indium phosphide or silicon.
Incoming signals on all wavelengths enter the module via an optical waveguide. An on-chip AWG spectrally separates the wavelengths, which are then routed to microring resonator switches via an interconnecting waveguide network. The resonator switches can add or pass-through signals depending on thermo-optic or electro-optic control. Dropped wavelengths are coupled out via another waveguide to a photodetector for conversion to electrical signals.
Tight optical tolerances during fabrication ensure low loss and crosstalk between channels. Miniaturized semiconductor amplifiers compensate for inherent component losses to maintain sufficient optical powers.
III. Applications of Optical OADM Modules
Compact, scalable Optical OADM Modules are well-suited for dense wavelength division multiplexing (DWDM) networks with high channel counts. Some key applications include:
.Metropolitan Area Networks: OADM modules allow metropolitan networks to securely interconnect many nodes via underground fiber backbones while locally adding/dropping express traffic.
.Access Networks: In fiber to the x (FTTx) architectures, OADM modules serve as distribution points to interface individual subscribers and their local loops.
.Long-Haul Networks: Modules enable flexible traffic grooming and sparse wavelength switching in core DWDM networks spanning countries/continents.
.Data Centers: As data volumes grow exponentially, OADM modules facilitate high-radix optical circuit switching within and between pods, racks, and servers.
Their integration enables seamless interfacing between transport and access layers across all-optical networking domains.
IV. Benefits of Optical OADM Modules
Compared to discrete OADM system implementations, properly designed Optical OADM Modules provide several benefits:
Scalability: Modules accommodate up to 100+ wavelengths on a single PIC compared to 16-32 max on traditional OADMs. This future-proofs networks for higher channel counts.
Compactness: PIC integration shrinks OADM footprints by 10-100x, depending on channel count. This drastically reduces rack space needs.
Energy efficiency: Miniaturized optics and amplifiers lower OADM power consumption to just a few watts versus 10-100x more for discrete units.
Flexibility: Advanced PIC designs enable facilitated reconfiguration of dropped/passed wavelengths without hardware changes.
Reliability: Robust, hermetically-sealed modules are less prone to environmental impacts than assemblies of discrete components.
Cost-effectiveness: High-volume PIC manufacturing amortizes NRE costs, lowering unit prices to a fraction of discrete OADM system costs.
In summary, Optical OADM Modules optimize DWDM networks through their unique combination of scalability, efficiency, flexibility and affordability.
V. Conclusion
In conclusion, Optical OADM Modules represent an innovative approach to realizing the core functions of wavelength selective switching in next-generation optical networks. By integrating all components directly onto a single photonic chip, modules maximize scalability, energy efficiency and flexibility while minimizing footprint and lifecycle costs. Their continued advancement will be instrumental for supporting the phenomenal growth of bandwidth-hungry applications and opening new frontiers for all-optical network architectures.
VI. FAQs
Q1.How many wavelengths can an OADM support?
Modern high-capacity OADM modules can support up to 100 wavelengths or more on a single chip, compared to 16-32 channels for most discrete OADMs. Higher channel counts allow future-proof scaling to accommodate bandwidth demand growth.
Q2.What are the common switching technologies in OADMs?
Common switching technologies include arrayed waveguide gratings (AWGs) for wavelength multiplexing/demultiplexing, thermo-optic phase shifters or micro-electro-mechanical system (MEMS) mirrors foradd/drop functionality, and semiconductor optical amplifiers (SOAs) for gain control. Emerging technologies like silicon microring resonators and plasmonics also show promise.
Q3.What network configurations use OADMs?
OADMs are widely used in metro WDM networks for interconnectivity between nodes. They also serve as distribution points in fiber-to-the-x (FTTx) access networks. OADMs facilitate traffic grooming and wavelength switching in long-haul/ultra-long-haul DWDM backbones spanning continents. Within data centers, they enable high-radix optical circuit switching.
Q4.What are tunable OADMs and their advantages?
Tunable OADMs (TOADMs) incorporate wavelength-tunable lasers, filters or switches to allow dynamic selection of dropped/passed wavelengths without changing hardware. This facilitates network reconfigurability and resilience against faults or traffic changes. TOADMs simplify network planning and reduce need for spare wavelength bandwidth.
Q5.How do ROADMs differ from OADMs?
Reconfigurable optical add-drop multiplexers (ROADMs) represent a more advanced class of OADM. Unlike fixed-grid OADMs, ROADMs allows arbitrary wavelength assignment and dynamic switching configurations without operator intervention. This maximizes flexibility for provisioning on-demand bandwidth in dynamic networks.
