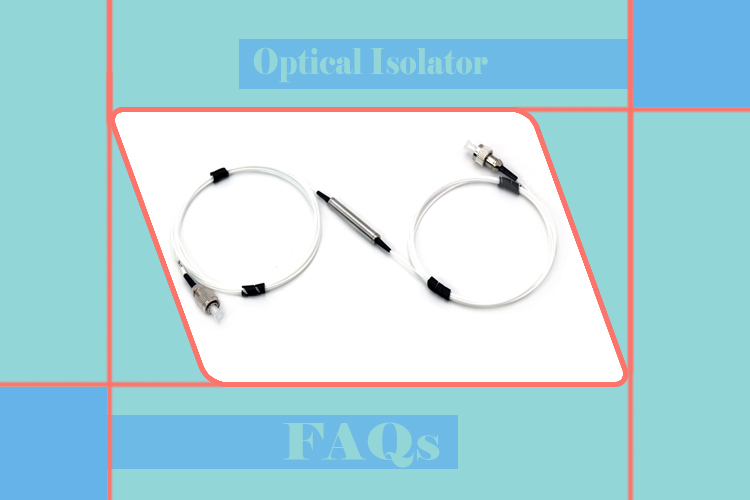

Optical Isolator FAQs
Optical Isolator FAQs
In today's rapidly advancing technological landscape, the need for efficient and reliable data transmission has become paramount. Whether it's in telecommunications, medical imaging, or industrial applications, the ability to transmit optical signals without interference is of utmost importance. This is where optical isolators come into play.
1. What is the basic structure and principle of an optical isolator?
An optical isolator is an optoelectronic component that allows light to pass through it in only one direction while blocking light in the opposite direction. It consists of three main components: a polarizer, a Faraday rotator, and another polarizer. The first polarizer is oriented such that it allows only light with a particular polarization to pass through. The Faraday rotator is made of a material, such as a rare-earth element, that rotates the plane of polarization of the light passing through it by 45 degrees. The second polarizer is oriented at 90 degrees to the first polarizer, thus blocking any light that has been rotated by the Faraday rotator. The result is that light can only pass through the isolator in one direction.
2. What are the common types of optical isolators?
The most common types of optical isolators are based on either bulk optics or fiber optics. Bulk optic isolators typically consist of a prism or mirror arrangement that introduces a rotation in the polarization of the light. Fiber optic isolators use a combination of fiber Bragg gratings and Faraday rotators to achieve the same effect.
3. What factors need to be considered when selecting an optical isolator?
When selecting an optical isolator, several factors need to be considered. These include the wavelength range of the light, the insertion loss (i.e., how much light is lost as it passes through the isolator), the isolation ratio (i.e., how effectively the isolator blocks light in the reverse direction), the power handling capacity, and the physical size and mounting options.
4. How to judge the technical specifications of an optical isolator?
The technical specifications of an optical isolator can be judged based on the above factors. In general, higher insertion loss and isolation ratios are better, as they indicate that the isolator is more effective at blocking light in the reverse direction. However, these factors must be balanced against other considerations, such as cost and power handling capacity.
5. What tests or inspections are required for optical isolators?
Optical isolators should be tested or inspected for several key parameters, including insertion loss, isolation ratio, polarization-dependent loss (i.e., how much the isolator affects the polarization of the light passing through it), and thermal stability. Additional tests may include measurement of the power handling capacity, as well as inspection for any physical defects or damage.
Optical isolators are indispensable tools in the world of optics. By providing optical isolation and preventing unwanted reflections, they enhance the efficiency and performance of optical systems across various industries. Whether it's in telecommunications, medical imaging, or industrial applications, the advantages offered by optical isolators are undeniable. As technology continues to advance, the demand for reliable and interference-free optical transmission will only increase, making optical isolators an essential component for any optical system.
