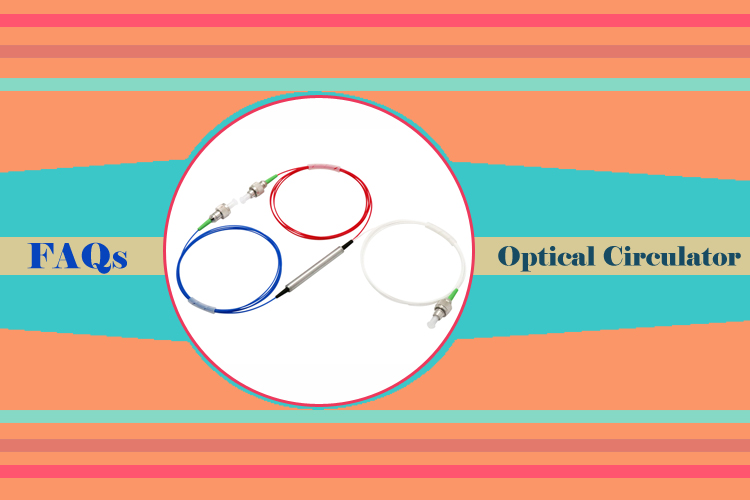

Optical Circulator FAQs

Optical Circulator FAQs

The field of optical Fiber communication has witnessed tremendous advancements in recent years, enabling the transmission of vast amounts of information over long distances with minimal losses. One crucial component that has revolutionized Fiber optic networks is the optical circulator.

1. What is an Optical Circulator?
An optical circulator is a device that allows the transmission of light in a unidirectional manner through multiple ports. It is based on the principle of non-reciprocity, meaning that light entering from one port can only exit through a specific port, while light entering from another port follows a different path. The core element of an optical circulator is the Faraday rotator, which utilizes the magneto-optic effect to rotate the polarization of light passing through it.

2. What are the types of Optical Circulators?
.Three port circulator (1-2-3): Port 1 is the input, port 2 is the output, and port 3 provides isolation from the reflected light. Materials used are TGG, Terbium Gallium Orthosilicate (TGO), etc.
.Four port circulator (1-2-3-4 or 1-2-Drop-Thru): Port 1 is input, port 2 is output, port 3 drops a signal, and port 4 passes the remaining signal. Uses TGO.
.Duplexer (1in-2out1&2, 1out1-2in): Combines/splits two wavelengths; ports 1in & 2in are inputs; ports 1out & 2out are outputs. Uses TGO.

3. What is the working principle of an Optical Circulator?
The Faraday effect causes a rotated polarization which acts as an isolator. In the forward direction, the light sees a high Verdet constant (rotates fast), isolating ports. In the reverse direction, the rotation is too slow, so light does not make it across.

4. What are some of the challenges in designing and manufacturing optical circulators?
There are several key challenges in designing and manufacturing optical circulators:
Developing high quality magneto-optic materials: The core element of an optical circulator is a magneto-optic material like Terbium Gallium Garnet (TGG) or Terbium Gallium Orthosilicate (TGO). Developing these materials with high Verdet constants, low optical losses and ability to withstand high magnetic fields remains a challenge.
Ensuring low insertion loss: Optical circulators are inserted into optical paths, so they must have minimize loss. Achieving IL<0.5dB across the band of interest is important for most applications. Lowering loss requires higher quality materials and improved fabrication techniques.
Increasing isolation bandwidth: Wider bandwidths, lower PDL and ability to handle more WDM channels translates to greater flexibility and usefulness. Expanding bandwidths beyond 100nm continues to be a key goal.
Improving temperature stability: A large temperature dependence can cause circulator performance to drift with environmental conditions. Reducing temperature sensitivity becomes more critical as systems operate over wider ranges. Compensating designs and materials are being developed.
Handling high power operation: As laser power increases, nonlinear effects come into play which can deteriorate isolation and increase noise. Developing circulators that can transmit high energies without degradation is an ongoing challenge.
Enabling compactness: Size, weight and cost are always important factors. Developing circulators with smaller footprints, lower weight, and lower material usage translates to lower costs and greater applicability. This drives continued miniaturization efforts.
Wafer-level and mass production: Like any optical component, lowering costs requires developing highly automated, mass production techniques. Improving yield, reducing variability and enabling higher volume manufacturing of circulators poses manufacturing challenges that drive innovation.
Novel applications: New and emerging applications for optical circulators continue to emerge, each with their own set of requirements and challenges. Developing circulators for applications like optical sensing, lasers, nonreciprocity, etc. requires meeting unique set of specifications. This fuels continued advancement across all areas.

5.What are some common applications of optical circulators in the telecommunications industry?
Optical circulators have many important applications in telecommunications:
• Isolating transmit and receive signals in optical transmitters and receivers. This prevents unwanted feedback which could damage laser sources. Optical circulators provide high isolation (typically >45dB) between ports which enables this.
• Wavelength division multiplexing (WDM) systems use optical circulators to combine and split groups of wavelengths. This allows multiplexing many channels onto a single fiber and demultiplexing them at different points. Optical circulators have a wide enough bandwidth (>75nm) to handle the large channel spacings used in WDM.
• Optical add/drop multiplexers (OADMs) employ optical circulators to add and drop individual wavelengths from a WDM system. This allows inserting and extracting specific channels at any point in the network.
• Protecting laser sources from high reflection feedback. The high isolation provided by optical circulators prevents damaging reflections from reaching the laser.
• Enabling reciprocity-free conversion between single mode fibers (SMF) and multimode fibers (MMF). By breaking reciprocity, a circulator can convert the mode field diameter between these fiber types while providing isolation.
• Bidirectional transmission over a single fiber. An optical duplexer, which consists of two circulators and a common port, can combine two counter-propagating wavelengths onto a single fiber for bidirectional transmission.
• Fiber optic gyroscopes use optical circulators to create a Sagnac interferometer for sensing rotation. The isolation ensures no light leaks from the interferometer.
• Circulator-based lasers use circulators as part of the laser resonator to achieve unique properties. The broken reciprocity enables new laser dynamics.

The optical circulator is a remarkable device that has revolutionized optical communication and various other fields. Its ability to enable unidirectional transmission of light through multiple ports has opened up new possibilities in network design, biomedical imaging, fiber sensing, and quantum information processing. As technology continues to advance, the optical circulator will undoubtedly play a crucial role in shaping the future of optical communication systems.
