FTTH Drop Fiber Optic Cable Central Loose Tube Flat Fiber Optic Cable GYFXTY-FL

Item No.: Y-FO-FC-017
The Flat-Span Drop Fiber Optic cable,Designed for quick installation and ease in handling, serves as the last link for the FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.
INQUIRY
Description Parameters Company Profile Related product
Description:

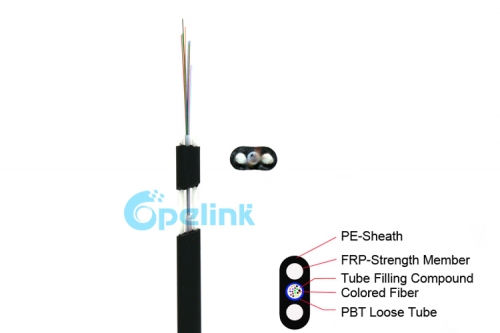

The Flat-Span Drop Fiber Optic cable,Designed for quick installation and ease in handling, serves as the last link for the
FTTx networks of today. The design is Uni-Loose Tube containing up to 24 fibers.Two embedded FRP member to provide
the mechanical properties of the cable. The finished product, with its compact size, acts as a self-supporting aerial solution
for those last mile drops to the home or office.

Features:
Good mechanical and environmental characteristics and anti-rodent;
The mechanical characteristics meets the requirements of relevants standards;
Soft, flexible, easy to splice, and with big capacity data transmission;
Meet various requirements of market and clients.


Application:
Used as access building cable.
Used in horizontal and vertical cabling , especially used for FTTH.
Indoor cabling  under  carpet and along corner.


Order Information:
Fiber Core Fiber Type Count Cable OD reinforcer  Fiber Jacket Jacked Color
1=G652D
2=G657A1
3=G657A2
4=50/125
5=62.5/125
6=OM3
7=OM4
X=other
S=simplex
Z=zipcord  Duplex
Y=Round Duplex
F=Flat  Duplex
B=Breakout
D=Distribution
R=Ribbon
A=Armored
W=Waterproof
X=other
001=1 core
002=2 cores
003=3 cores
024=24 cores
XXX=other
01= 0.9mm
02=2.0mm
03=3.0mm
04=2.9*6.0mm
05=1.9*3.1mm
06=4.2*7.6mm
07=9.0mm
08=11.2mm
09=4.0*7.0mm
XX=other
1=Kevlar
2=FRP
3=Armoured steel tape
4=Steel wire
5= Armoured steel tape & Steel wire

PR=PVC-OFNR
PP=PVC-OFNP
LH=LSZH
PE=PE
PU=TPU
LN=Nylon
HT=Hytrel
xx=other
01=Blue 02=Orange
03=Green  04=Brown
05=Slate ,
06=White
07=Red
 08=Black
09=Yellow   10=Violet
11=Rose   12=Aqua
13=12 Color
 XX=other
Tags:
Fiber Optic PLC Splitter  | Optical CWDM/DWDM/AWG  | FTTH Drop Fiber Optic Cable  | Fiber Optic PatchCord/jumper/Patch cable  |
Fiber Optic Fast Connector  | Optical Switch  | Fiber Optic Adapter  | Fiber Optic Attenuator  | Fiber Optic Cable TerminalBox |

Technical Parameters:
Fiber
Count
Nominal
Diameter
(mm)
Nominal
Weight
(kg/km)
Allowable Tensile
Load (N)
Allowable Crush
Resistance (N/100mm)
Aerial Install span with 1%sag
Short
Term
Long
Term
Short
Term
Long
Term
NESC Light NESC Medium NESC Heavy
2~12 4.5*8.0 39 1800 750 2000 800 100meters 80meters 50meters
14~24 4.9*8.4 45 1800 750 2000 800 80meters 60meters 40meters
Note:For more details, please contact our sales
