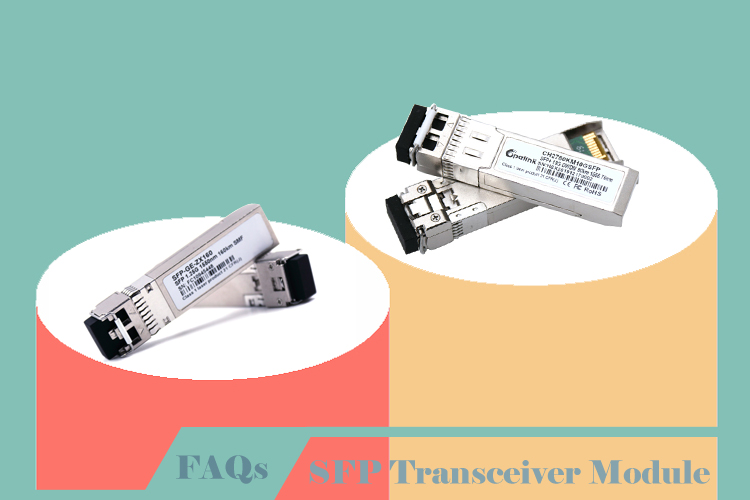

SFP Transceiver Module FAQs

SFP Transceiver Module FAQs

SFP (Small Form-factor Pluggable) transceiver modules have become an integral component for transmitting and receiving data over optical fiber networks. These compact devices offer great flexibility and compatibility, making them a popular choice among network administrators.

1. What is an SFP Transceiver Module?
An SFP Transceiver Module, which stands for Small Form Factor Pluggable, is a compact optical transceiver used to convert electrical signals to optical signals and vice versa. It connects a fiber optic cable to compatible ethernet switches, routers, transceivers and other networking equipment.
SFP Transceivers provide high-speed fiber optic connectivity and allow these networking devices to connect and transmit data over fiber optic links. They offer significant advantages over copper cables including high bandwidth, electromagnetic interference immunity, radio frequency interference resistance and long reach.
2. What are the main types of SFP Transceivers?
The main types of SFP Transceivers are:
• SFP - Standard Small Form Factor Pluggable. Supports ethernet speeds up to 1Gbps. Uses LC connectors and supports SMF fiber up to 40km or MMF up to 2km.
• SFP+ - Enhanced Small Form Factor Pluggable. Supports ethernet speeds up to 10Gbps. Often used for 10GBASE-T and 10GBASE-SR ethernet networks using LC connectors and SMF fiber up to 30km or MMF up to 150m.
• XFP - 10 Gigabit Small Form Factor Pluggable. Supports 10GBASE-LR, 10GBASE-LRM and 10GBASE-LRWL transceivers for 10Gbps speeds and up to 40km reach. Uses LC or MPO connectors. Often used in 10G data center networks.
• CFP - Compact Form Factor Pluggable. Supports ultra-fast ethernet speeds up to 100Gbps. For 100GBASE-SR4, 100GBASE-LR4 and 100GBASE-ER4 transceivers used in 100G ethernet networks. Uses MPO connectors with up to 10km, 40km or 70km fiber reach respectively.
• CFP2 - Even smaller than CFP, also supports 100Gbps speeds. Mainly used by data center providers for high-density connections with up to 4.5W transmission power.
3. What are the fiber optic connectors used with SFP Transceivers?
The most common fiber optic connectors used with SFP transceivers are:
• LC connectors - Very small and compact, allows tight bends. Most commonly used, especially with SFP and SFP+ transceivers.
• MPO connectors - Supports higher density with up to 12 fiber strands. Used with XFP and CFP transceivers for high speed networks.
• SC connectors - Also very common and supports both SMF and MMF fibers.
4. What are the key benefits of using SFP Transceivers?
• Flexibility - Can support different fiber types (SMF, MMF), fiber optics lengths, speeds, and connectors using different SFP modules.
• Upgradability - Can upgrade the network speed simply by plugging in higher speed SFP transceivers as required.
• Compact size - Small form factor allows more transceivers to be installed in limited rack space.
• Hot-swappable - Can be installed and removed while the switch is powered on and running.
• Optical signaling - Immune to electromagnetic interference and resistant to radio frequency interference.
5. What are the main applications of SFP Transceivers?
• Data centers - For high speed connections between ethernet switches, storage arrays, and servers. Uses SFP+, XFP, CFP and CFP2 transceivers.
• Campus networks - Connecting switches over longer distances using SMF or MMF fibers. Commonly uses SFP and SFP+ transceivers.
• Fiber to the desk (FTTD) - Bringing fiber optic connectivity directly to individual work desks. Uses SFP and SFP+ transceivers with LC connectors.
• Metropolitan area networks (MANs) - Connecting networks over longer distances (up to 50km). Uses XFP and CFP transceivers.
• Long haul networks - For distances up to 140km. Using specialized long haul SFP or XFP transceivers.
• Industrial networks - For harsh, rugged environments. Uses SFP and SFP+ transceivers with ruggedized LC connectors.
In summary, SFP Transceiver Modules provide a flexible, scalable and compatible solution for building fiber optic networks with different speeds, distances and connectivity requirements. They continue to enable faster network speeds and higher bandwidth connectivity across data centers, enterprises and telecommunications networks worldwide.
