An In-Depth Guide to Wavelength Division Multiplexing (WDM) Modules
An In-Depth Guide to Wavelength Division Multiplexing (WDM) Modules
Introduction
Wavelength Division Multiplexing (WDM) is a technology that enables communication over optical fiber networks more efficient by combining multiple wavelengths of light on the same fiber. WDM modules play a crucial role in increasing network capacity and allowing multi-service transmission by converting electrical signals into optical signals at different wavelengths that can travel together through a single fiber optic cable. This article will provide an in-depth overview of WDM modules, their types, applications, and benefits.

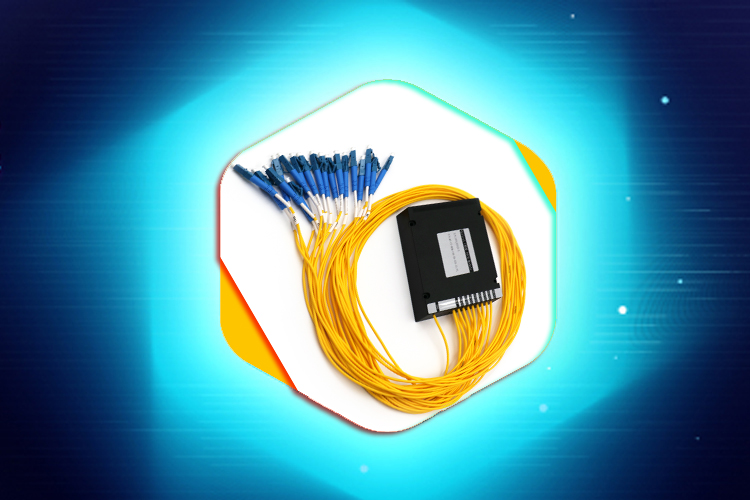

WDM Module Types
There are two main types of WDM modules, Coarse Wavelength Division Multiplexing (CWDM) and Dense Wavelength Division Multiplexing (DWDM).
1. CWDM Modules: CWDM technology multiplexes multiple optical carrier signals on a single optical fiber by using different wavelengths, usually spaced 20 nm apart, with transmission distances reaching up to 120 km. CWDM modules typically support 8 or 16 wavelength channels and are considered a cost-effective solution for network operators needing to expand capacity without deploying additional fibers.
2. DWDM Modules: DWDM technology provides higher-density channel spacing compared to CWDM, enabling the support of more channels (up to 160) on a single fiber. DWDM modules have narrower wavelength intervals, typically 0.8 nm or 0.4 nm, and can achieve transmission distances of up to 2,500 km. Although generally more expensive than CWDM solutions, DWDM offers higher capacity and longer transmission distances, making it suitable for large-scale network deployments.
Applications of WDM Modules
1. Telecommunication Networks: WDM technology is widely used in telecommunications to expand network capacity and transmit multiple signals simultaneously without compromising speed or quality.
2. Enterprise Networks: Amidst the growing demand for high-speed data connectivity, WDM modules help businesses extend their network infrastructure more cost-effectively, especially for data center interconnects and campus-wide networking.
3. Video & Broadcast Services: WDM provides broadcasters and media companies the ability to transport high-bandwidth video traffic over long distances, making it an ideal solution for live event coverage and content distribution networks.
4. Research & Education Networks: Universities, research labs, and other educational institutions rely on high-speed connections for data-sharing, collaboration, and communication. WDM modules enable these organizations to optimize their network infrastructure and accommodate increasing bandwidth demands.
Benefits of WDM Modules
1. Increased Capacity: By allowing multiple wavelengths to be transmitted simultaneously on a single fiber, WDM technology significantly increases the overall capacity of fiber-optic networks.
2. Lower Costs: By using WDM modules to expand capacity, network operators can avoid deploying new fibers, reducing both capital expenses and operational costs in a network expansion.
3. Scalability: WDM modules enable network capacity to be increased incrementally, providing a flexible solution that can be easily scaled in response to growing demands.
4. Enhanced Performance: WDM technology maintains signal quality and integrity over long distances, making it an ideal solution for businesses requiring high-performance connections, such as data centers and media companies.
Conclusion
As network operators worldwide face increasing pressure to support the growing demand for high-speed, high-capacity communication services, Wavelength Division Multiplexing technology has emerged as a compelling solution. By leveraging WDM modules, network operators can efficiently increase their network capacity without deploying new fiber, resulting in significant cost savings and enhanced performance. As data and video traffic continue to drive network expansion, WDM technology will undoubtedly play an increasingly important role in the future of optical fiber communications.
