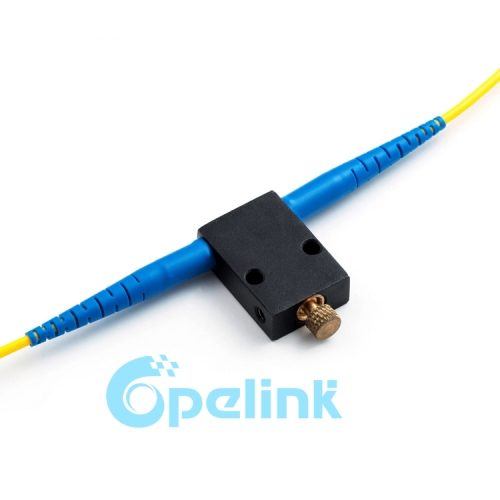

SC-SC Singlemode Fiber Patchcord Type Mechanical adjustable Fiber Optic Attenuator, in-Line Variable optical Attenuator VOA

SC-SC Singlemode Fiber Patchcord Type Mechanical adjustable Fiber Optic Attenuator, in-Line Variable optical Attenuator VOA

Name: SC-SC Singlemode Fiber Patchcord Type Mechanical adjustable Fiber Optic Attenuator, in-Line Variable optical Attenuator VOA
Brand: OPELINK
SKU: Y-FO-OA-025
Availability: InStock
Rating: 5 (1 reviews)

Item No.: Y-FO-OA-025

in-line variable optical attenuators can be used in fiber optical telecommunication system and optical transmission system. These attenuators can be applied in FTTH, CATV, LAN, fiber optical sensor and subscriber loop.

INQUIRY

Description Parameters Company profile Related Product

Description:
SC-SC Variable in-line Optical Attenuators (Adjustable in-line optical attenuator) are used to permit dynamic control of optical
power levels in a fiber. It uses for precisely balancing the signal strengths in fiber circuits or balancing an optical signal
when evaluating the dynamic range of the measurement system. With turning the knob by hand, attenuation value can
be set up to 55dB.

It can be applied to adjust power level of signal in the optical communication at the output of light sources, E/O

converters and for the linear or dynamic range of power meter. Furthermore, they can the used in optical amplifier

systems to balance the gain across the different operating wavelengths.

SC-SC Singlemode Patchcord Type up to 55dB Variable optical Attenuator

Features:
Low additional loss
Perfect environmental stability and reliability
High Precise attenuation value
Flawless end face Wide attenuation range (variable)
Applications:
Subscriber loop
Fiber optical sensor
Testing equipment
Fiber optical telecommunication system

Specifications:

Parameter	Multimode	Multimode	Singlemode	Singlemode	Singlemode
Operating Wavelength	850nm	1300nm	1310nm	1550nm	1310nm and 1550nm
Wavelength Range	820nm - 880nm	1270nm - 1330nm	1270nm - 1350nm	1510nm - 1590nm	1270nm - 1350nm and 1510nm - 1590nm
Attenuation Range	1.0dB - 55dB	1.0dB - 55dB	0.6dB - 55dB	0.6dB - 55dB	0.8dB - 55dB
Insertion Loss	≤1.0dB	≤0.6dB	≤0.6dB	≤0.6dB	≤0.8dB
Return Loss	≥35dB	≥35dB	≥50dB	≥50dB	≥50dB
Fiber Type	50/125um,62.5/125um		9/125um
Max. Power	300mW
Polarization-Dependent Loss	≤0.15dB
Operating Temperature	0℃ - +70℃
Storage Temperature	-40℃- +85℃
