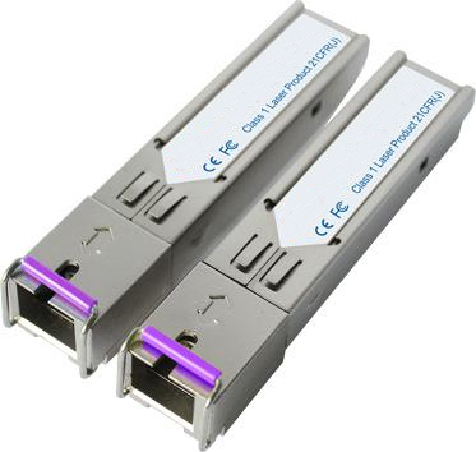

DDM 1.25g Bidi SC SFP module fibre optic Transceiver

Item No.: Y-FO-SF-008
The Optical Transceivers are a high performance, cost effective module which have a single SC optics interface. They are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available.
Description

Description
The Optical Transceivers are a high performance, cost effective module which have a single SC optics interface. They are compatible with
the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA) and Digital diagnostics functions are available via the 2-wire
serial bus specified in SFF-8472. The receiver section uses a PIN receiver and the transmitter uses a 1310 nm FP laser, up to
14dB link budge ensure this module 1000Base-LX Ethernet 3km application.

DDM 1.25g Bidi SC SFP module fibre optic Transceiver
Features
SFP Package with SC connector
1.25Gbps, 1310nm BM APD receiver
1.25Gbps, 1490nm transmitter
Compliant with IEEE 802.3ah-2004
Up to 20km distance at G.652 SMF
Compliant with RoHS
Operating case temperature range of 0°C to +70°C

Application
EPON 20km OLT Side;
Access Networks;
Fiber to the Home, Curb, Office (FTTx)
