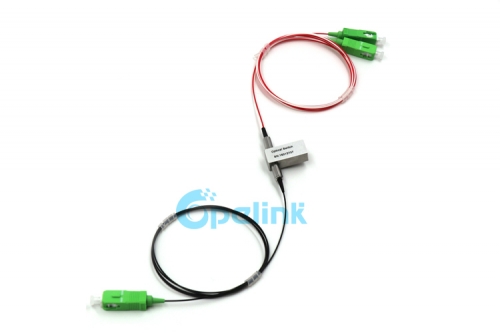

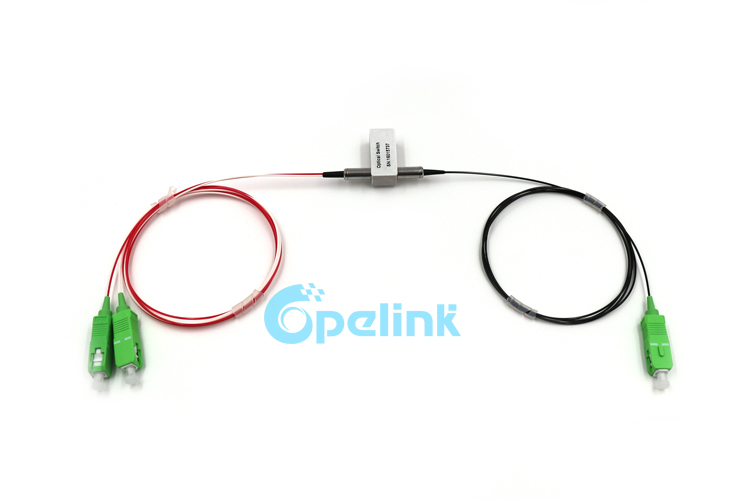

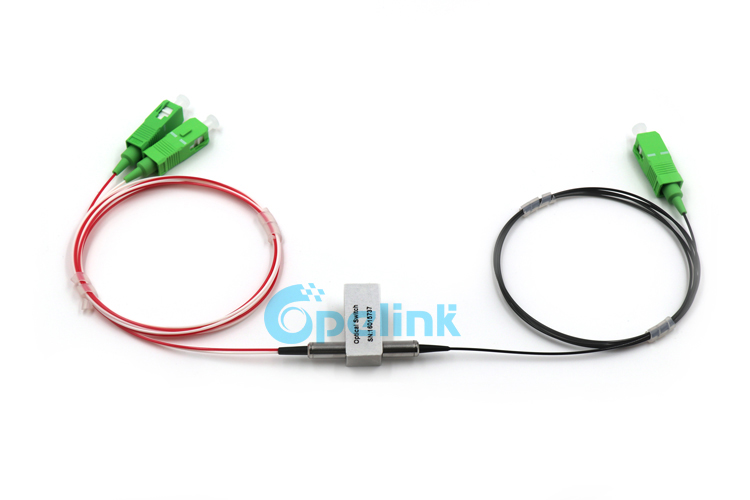

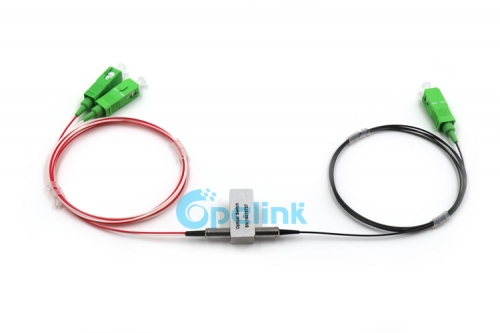

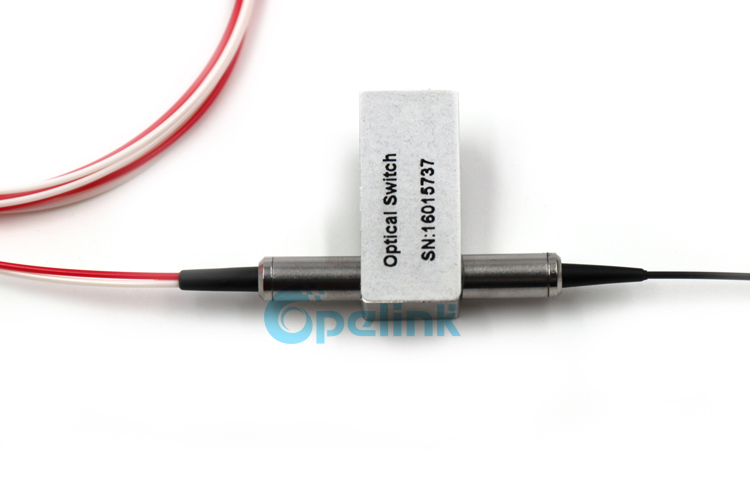

1X2 0.9mm SC/APC OSW Mechanical Optical Switch

Item No.: Y-FO-OS-005
1x2 optical switch is designed for use in optical fiber communication networks. The Fiber switch is commonly used in OXC, OLP, and OADM systems.
  • Brand Name: OPELINK
  • Place of Origin: Guangdong, China
  • Product name: Optical Switch / Fiber Switch
  • Low Price: 31.80 USD
  • Description Parameters Company Profile Related Product
    Description:
    1x2 optical switch is designed for use in optical fiber communication networks and measurement instruments. The switch consists of two ports
    that selectively transmits, redirects, or blocks optical power in a fiber optic transmission line. The optical switch must be actuated to select or
    change between two states. Furthermore, for the Latching type, it only takes an electrical pulse width with duration >=20msec to change the state.
    As a result, it consumes low electric energy to operate the optical switch.

    OSW1X2 Mechanical Optical Switch
    Features:
    Low Insertion Loss
    Wide Wavelength Range
    Low Crosstalk
    High Stability, High Reliability
    Latching and Non-latching

    Applications:
    Sub-system Integration
    Optical Network Monitoring/Protection
    Route Fiber Test System
    Re-configurable OADM
    Test & Measurement Equipment Manufacturing   Application
    Network Test System



    Specifications:
    Parameter Unit Multimode Singlemode
    Operating Wavelength nm 850/1300 1280 ~ 1340 / 1520 ~ 1625
    Insertion Loss dB Typ:0.8 Max:1.2 Typ:0.5 Max:0.8
    Return Loss dB MM≥30 SM≥50
    Crosstalk dB MM≥35 SM≥55
    PDL dB ≤0.05
    WDL dB ≤0.25
    TDL dB ≤0.25
    Repeatability dB ≤±0.02
    Power Supply V 3.0 or 5.0
    Lifetime Times ≥107
    Switch Time ms ≤8
    Transmission Power mW ≤500
    Operating Temperature -20~+70
    Storage Temperature -40~+85

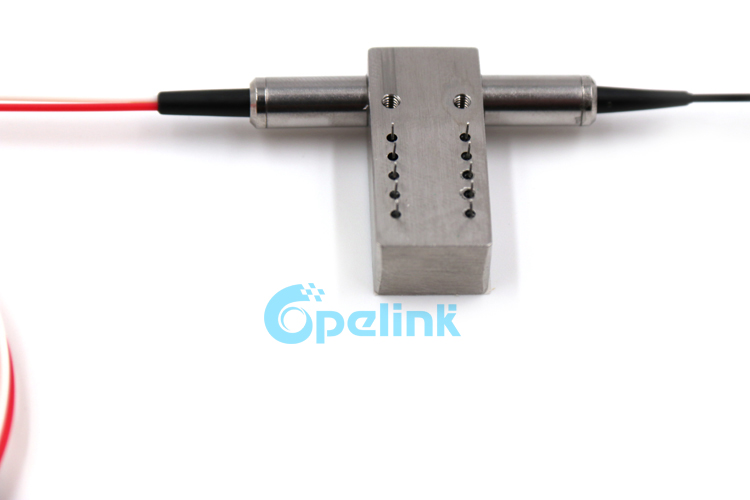

    Dimension mm (L)27.0×(W)12.6×(H)8.0(±0.2)

    Note:
    1.Specification may change without notice.
    2.Above specification are for device without connector.
    3.For more details, please contact our sales


    Pins

    Type Optical Route Electric Drive State Sensor
    1×2 Pin 1 Pin 5 Pin 6 Pin 10 Pin 2-3 Pin 3-4 Pin 7-8 Pin 8-9
    Latching P1-P2 -- -- GND V+ Close Open Open Close
    P1-P3 V+ GND -- -- Open Close Close Open
    Non-latching P1-P2 -- -- -- -- Close Open Open Close
    P1-P3 V+ -- -- GND Open Close Close Open
